Food waste can be a big problem in all sizes of Care homes. EX range of digesters can now turn food waste & dead flowers into grey water. Running off a standard wall plug, the only integration needed is a hot water pipe (30-38 degrees c) feeding water to the device and a waste pipe connected from the device to the grey water tanks.
The microorganisms are the only by-product, needing to be cleaned and replaced out every 12-24 months.
The microorganisms inside have a semi-permanent lifespan, the machines need re-inoculating every 12-18 months. EX series Digesters come with a 3-year warranty. With the first device being installed in 2006, the machine is proven, reliable and well-tested technology.
Over the next few pages, you will find information on three versions of the EX Series, including the 10kg, 30kg and 50Kg devices, including quick specs.
EX10 – 10Kg | EX30 – 30Kg | EX50 – 50Kg
The World’s most efficient waste management system.
Types of Food Waste – Time To Be Turned Into Grey Water
Staple Foods – 3-5 hours
Fish – 3-5 hours
Meat – 4-7 hours
Green Vegetables – 8-24 hours
Root Vegetables – 8-24 hours
Fruit – 8-16 hours
Shellfish, Bread, Eggshells – 8-24 hours
Elimination of odours and germs
Safe storage and transportation in the kitchen
Benefits to the environment
Protection for staff and residents

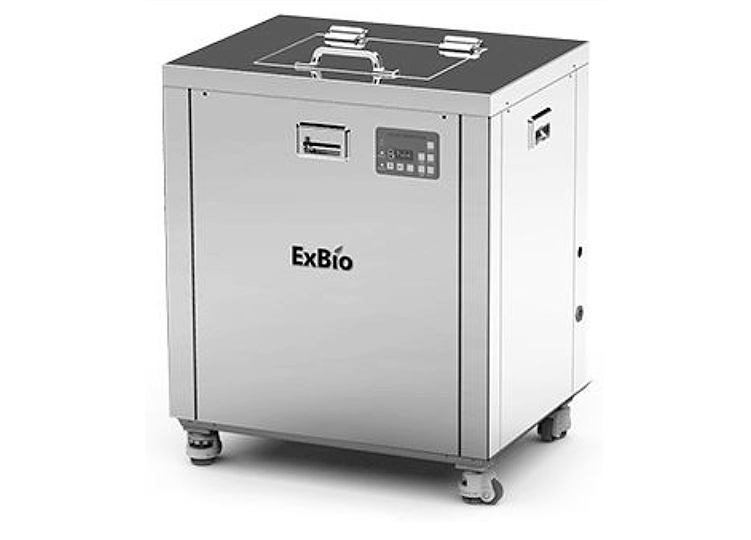

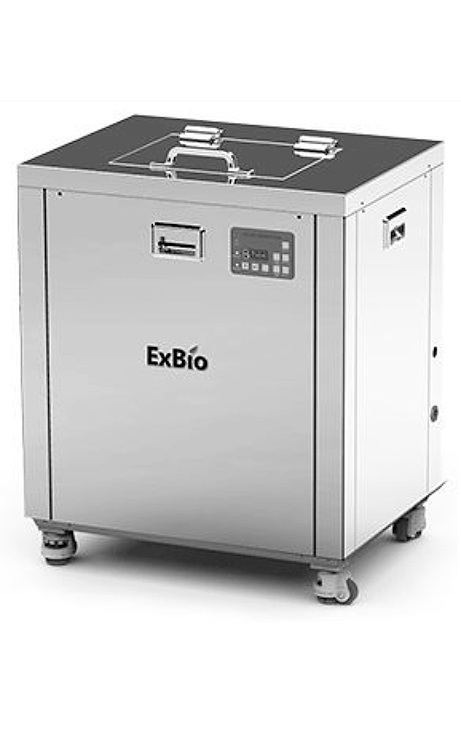

EX10 - 10 Kg
The EX10 is the most compact version of the EX Series, the device is supplied with floor blocks, rather than the wheeled device shown in the picture. Food is added by opening the top hatch and throwing your organic waste into the microorganisms.
Based on the type of food waste, the microorganisms will break down the food waste and the only by-product is grey water which can be piped to the grey water tanks.
EX10 is small enough to install in a yacht galley, either freestanding or under counter with a cut out for the hatch.
Quick Specs
10Kg Food Capacity | 240V 50/60Hz 1 phase | Simple & safe to operate | 210W | Power Consumption 1.43kwh | 90L Feed of warm water | 60Kg | 6-8 week lead time | 522 x 400 x 625 (W/D/H)

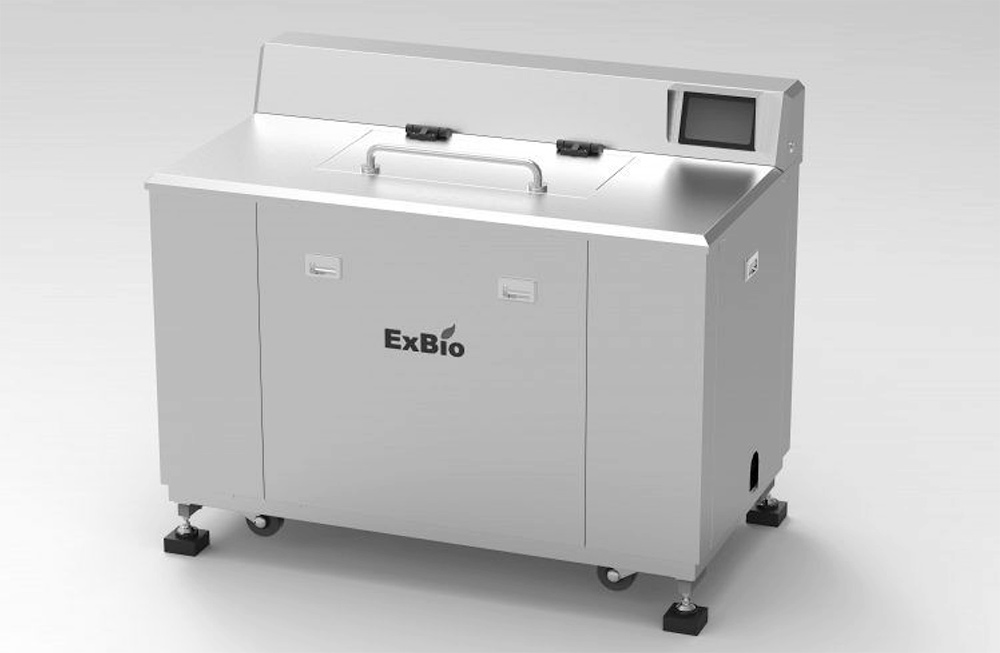

EX30 - 30 Kg
The EX30 is the medium sized option. Working exactly the same as the EX10, the device is able to process up to 30k of food waste at one time. Again the device is supplied on blocks as shown in the picture.
Quick Specs
30Kg Food Capacity | 240V 50/60Hz 1 phase | Simple & safe to operate | 480W | Power Consumption 3.20kwh | 150L Feed of warm water | 120Kg | 6-8 week lead time | 643 x 510 x 765 (W/D/H)

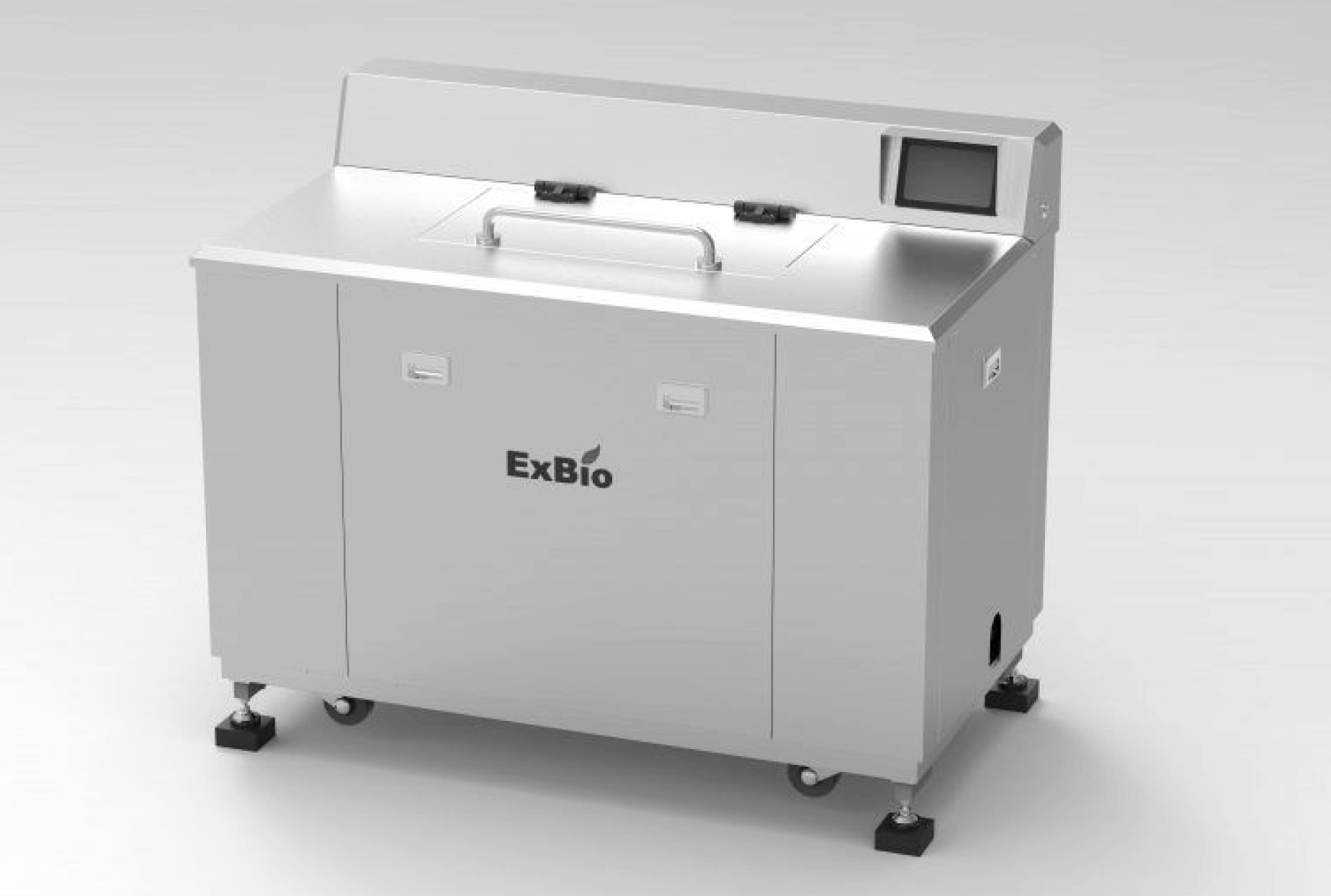

EX50 - 50 Kg
The EX50 is the largest sized option. Working exactly the same as the aforementioned devices, the device is able to process up to 50k of food waste at one time. Again the device is supplied on blocks as shown in the picture.
Quick Specs
50Kg Food Capacity | 240V 50/60Hz 1 phase | Simple & safe to operate | 850W | Power Consumption 5.54kwh | 260L Feed of warm water | 180Kg | 6-8 week lead time | 914 x 668 x 1,012 (W/D/H)
